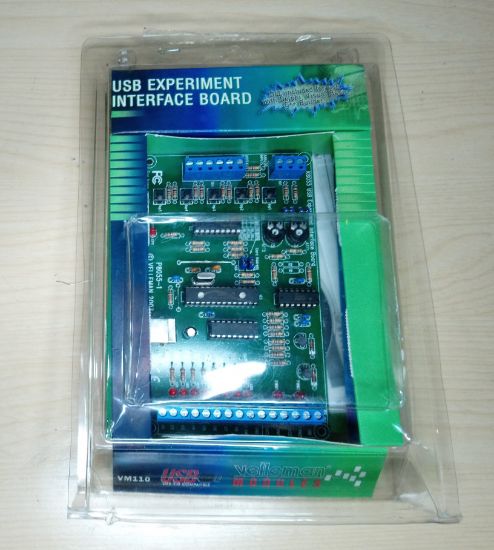

BOXED VELLEMAN VM-110 USB EXPERIMENT INTERFACE BOARD P8055-1

BOXED VELLEMAN VM-110 USB EXPERIMENT INTERFACE BOARD P8055-1

The VM110 interface board has 5 digital input channels and 8 digital output channels. In addition, there are two analogue inputs and two analogue outputs with 8 bit resolution. The number of inputs/outputs can be further expanded by connecting more (up to a maximum of four) cards to the PC's USB connectors. All communication routines are contained in a Dynamic Link Library (DLL) K8055D.DLL. You may write custom Windows (98SE, 2000, Me, XP and newer) applications in Delphi, Visual Basic, C++ Builder or any other 32-bit Windows application development tool that supports calls to a DLL (Visual Studio, DJGPP etc.). Source code for Visual Basic, Delphi and Borland C++ Builder included.

Shows up as a USB HID class device, so will also work with modern OSes (supplied demo application tested and working under 64 bit Windows 10). Can also be used with Linux (for example using libusb / hidapi).

Based on a PIC16C745 MCU.

Full set:
- original box (slightly damaged)
- interface board
- USB cable
- CD with demo software and source code examples
- manual
- warranty card

Manufacturer specifications:
    Manufacturer: VELLEMAN
    Factory number: WSI8055N
    EAN / GTIN: 5410329305840
